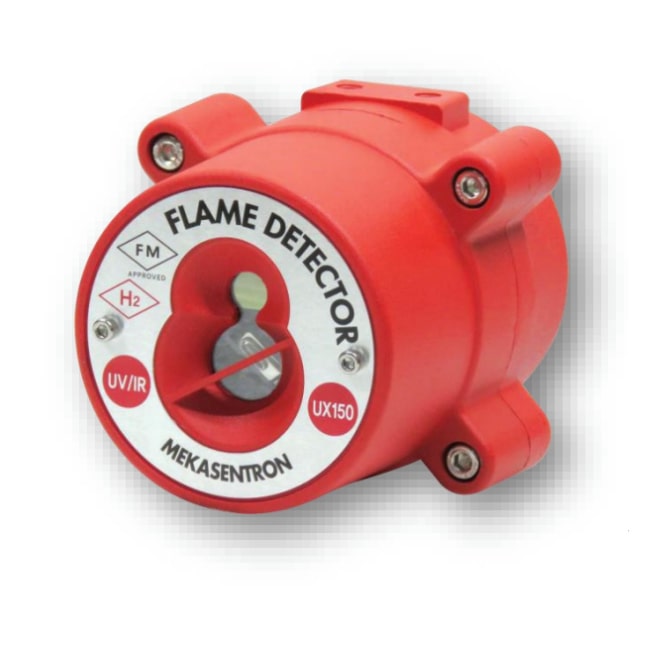

Ultraviolet and Infrared (UV/IR) FM Approvals HYDROGEN Flame Detector

High Sensitivity UV and IR detectors
Detection Range : 15M
Response Time: < 5 sec
Field of View: 90 degrees horizontal and vertical
Operating Temperature: -40°C to +75°C
Humidity : Up to 95%
IP Rating: IP66/67
Ex db IIB+H2 T6 Gb (IECEx)
Ex db IIC T6 T6 Gb, Ex tb IIIC T85°C Db (ATEX)
Material : Aluminum / SUS
Voltage Range: 18 – 30 VDC
Power Consumption: Normal Average 100mA /
Max 3W (@24VDC)
Relative Humidity: 0-95%
Weight (with swivel) : 1.4kg/2.53kg
